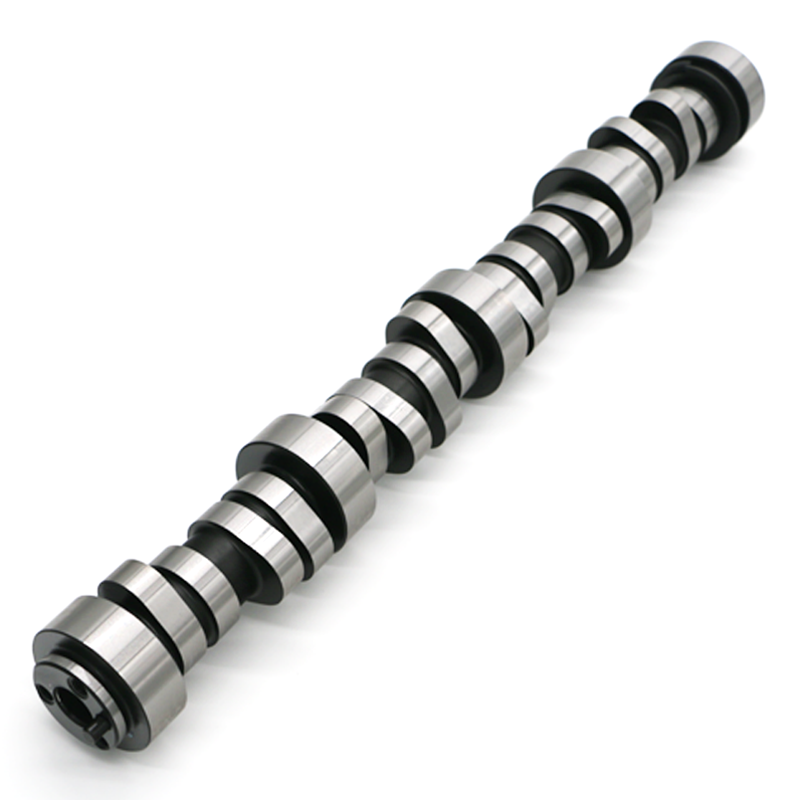

TSP Stage 1 Cathedral Camshaft - 224R

TSP Cathedral Heads Stage 1 Cam Specs: 224/224 .600/.600 112LSA or 114LSA

The Stage 1 camshafts use lobes that are designed to be both beehive & double valve spring friendly. The Stage 1 camshaft is available in a wide variety of lobe separations. The most popular options customers select is either the 112LSA or the wider 114LSA. The 112LSA helps to bring the camshafts powerband lower in the rpm band. The lower LSA also creates a slightly rougher idle. The Stage 1 camshaft is without a doubt one of the most popular camshafts we offer for the LS1 engines. It has awesome drivability while making a solid 40+ rear wheel horsepower gains!  For customers looking for a smaller camshaft that packs a big punch, the Stage 1 camshaft is pretty hard to beat!

• Engines best suited for: Cathedral Heads - LS1, LS2, & LS6
• Desired Compression ratio for cam: 9.5:1+
• Recommended Springs Required: PAC 1219 or TSP/PAC Dual .660 Valve Springs
• Aftermarket Stall Converter Required: On a 114LSA it will work with the stock torque converter. The 112LSA could benefit from 2600+ stall converter.
• Upgraded Rear Gear Required: No
• Operating RPM Range: 1400-6500
• Estimated Power Increase: 45-50+

• Drivability: Great driveability, has great stock like manners with good lope at idle and makes great power! Custom Tuning required.
