Trans-Dapt Performance 1964-67 GM A-Body LS Swap-In-A-Box Kit

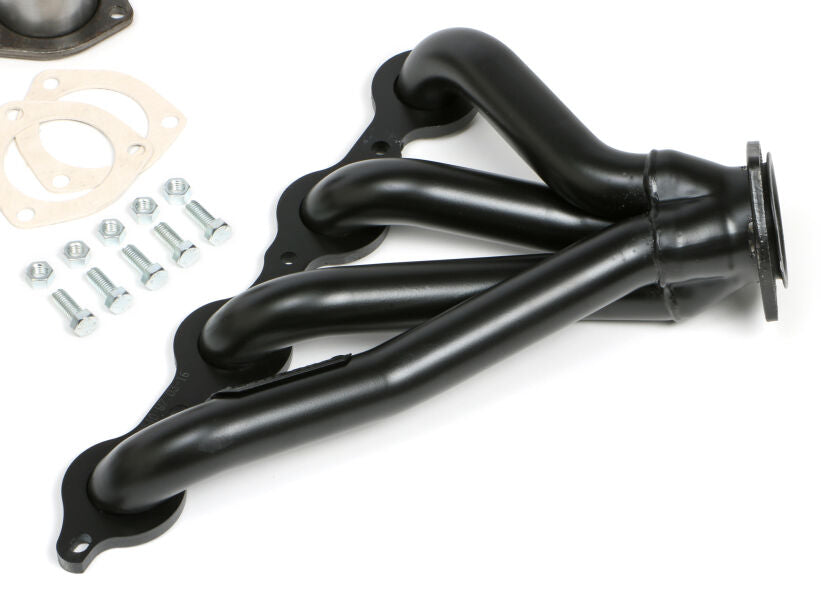

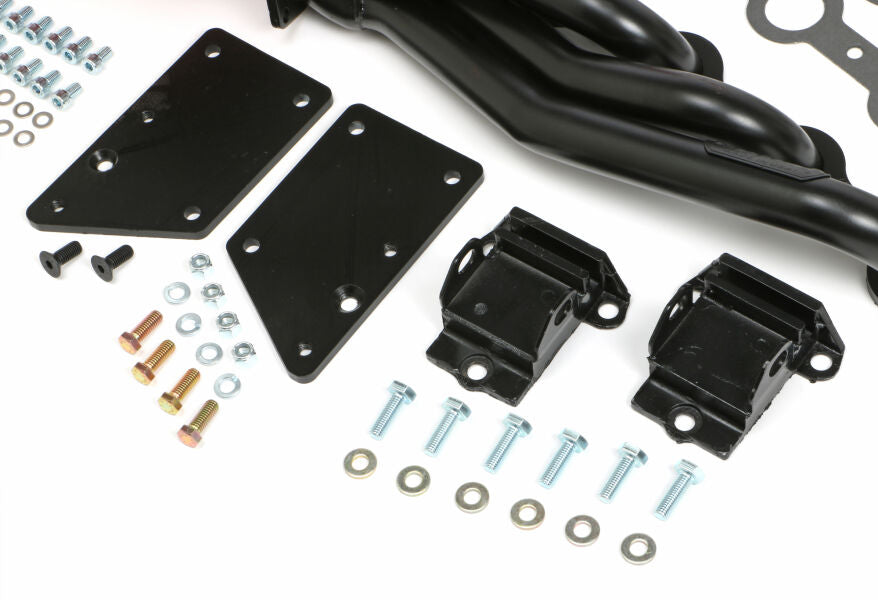

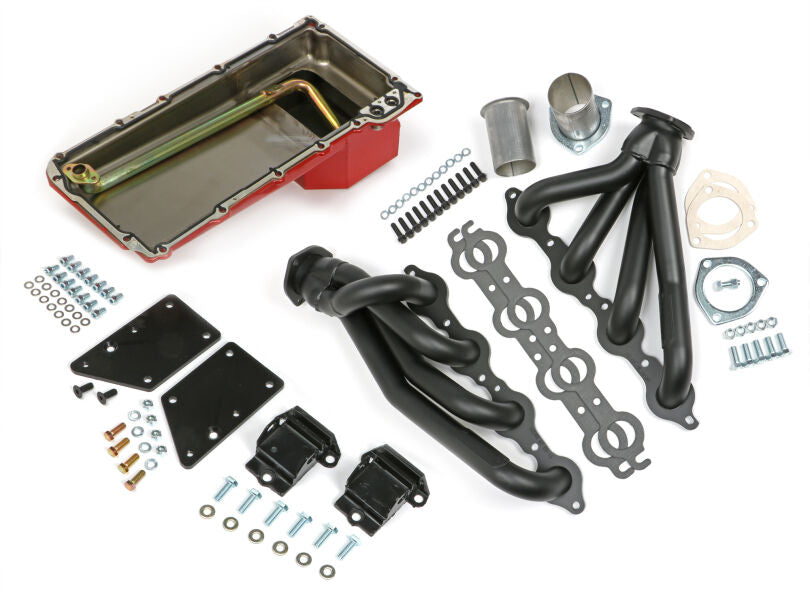

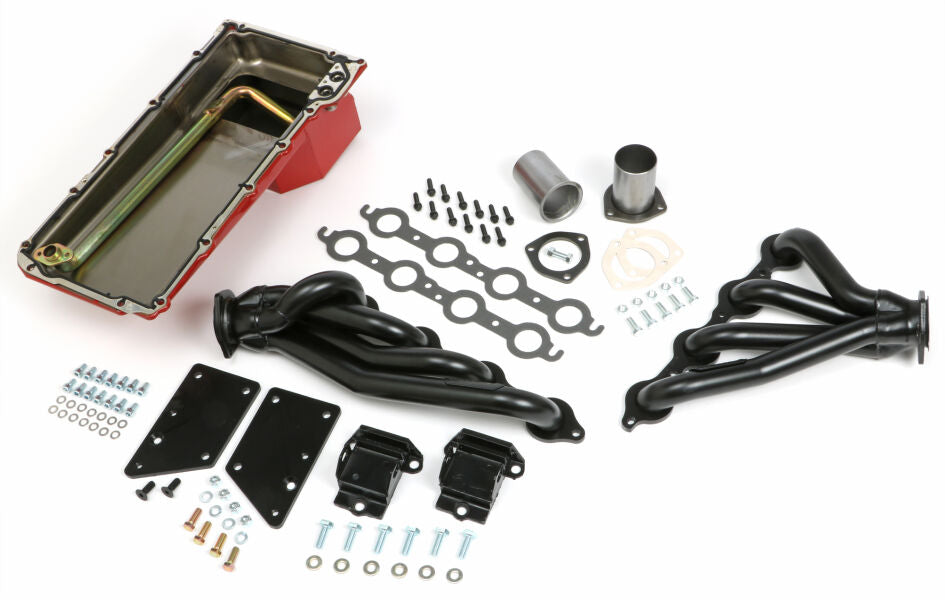

This Swap-In-A-Box Kit is developed specifically for installing an LS engine and T-56, 4L60E, 4L65E transmissions into '64-67 GM A-Body cars... and trucks when you throw in the El Camino (Caballero, Cutlass, El Camino, Skylark, Chevelle, Tempest, LeMans, GTO). This comprehensive kit includes a pair of 1-3/4" diameter, Mid-Length headers with gaskets, bolts and exhaust collector adapters; a complete LS engine mount kit with hardware and rubber pads; LS swap engine oil pan with bolts, gasket and special oil pick-up tube; a transmission crossmember with rubber isolator pad, adapter brackets to accommodate all the listed transmission models and hardware; an LS swap engine oil pan with bolts, gaskets and special pick-up tube.

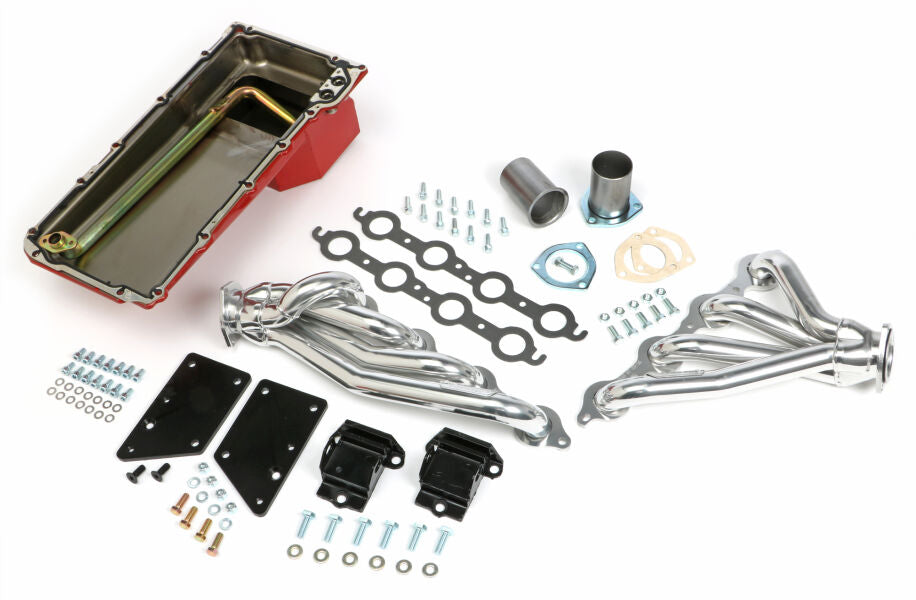

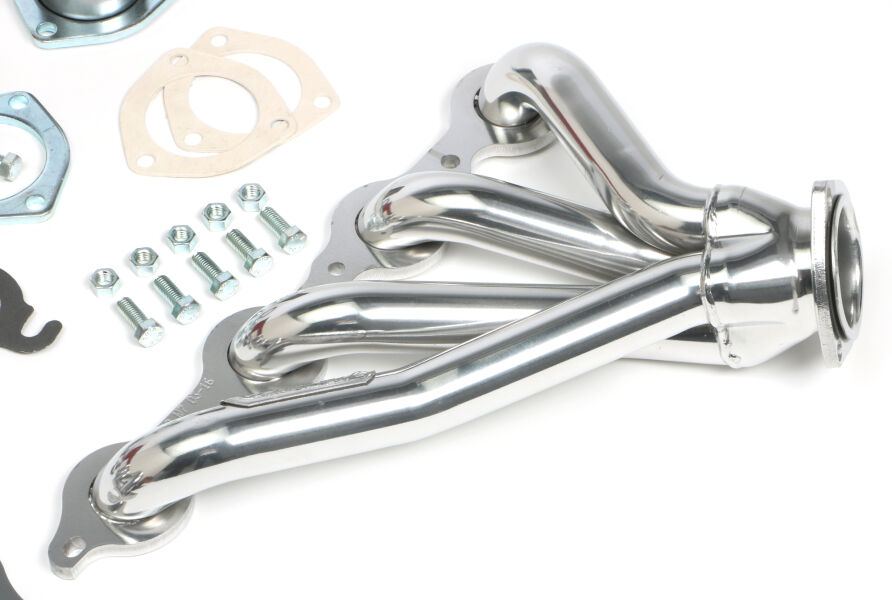

Kits with Hedman's HTC polished silver ceramic-coated, or Black-Maxx satin black ceramic-coated headers are also available.

Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.

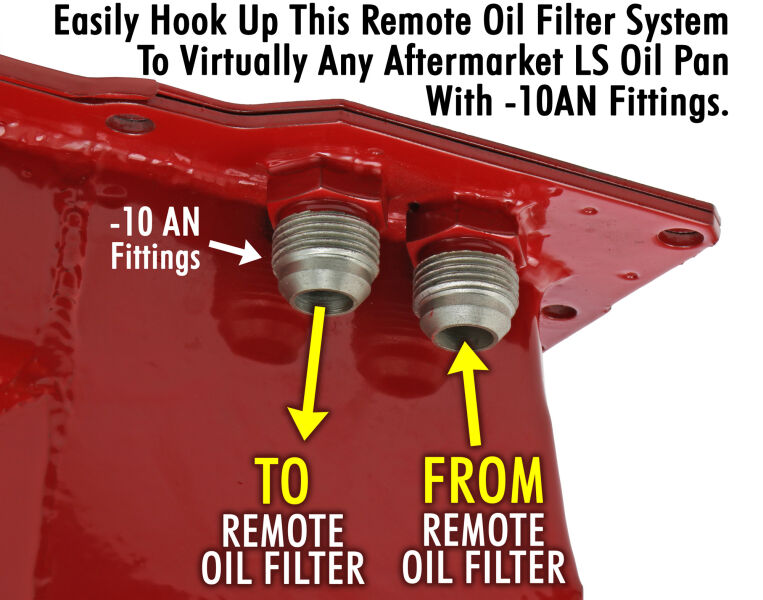

• IMPORTANT INFO ABOUT THIS KIT AND YOUR LS ENGINE'S OIL FILTER LOCATION!This LS Swap kit uses a specially designed STEEL engine swap pan that requires the relocation of your LS engine's oil filter. The HP Group manufactures and offers six different oil filter integration kits. CLICK HERE TO VIEW THESE LS ENGINE SWAP FILTER INTEGRATION KITS IN A NEW WINDOW
• Tube Diameter1-1/2 in.
• Air Conditioning - Yes
• Automatic Transmission - Column - No
• Automatic Transmission - Floor - Yes
• Manual Transmission - Column - No
• Manual Transmission - Floor - Yes
• Power Steering - Yes
• Transmission Compatibility - 4L60E, 4L65E, T-56
• Baffled - No
• Chassis Compatibility - CHEVY ONLY. Buick, Pontiac, Olds models require frame kit #9596. Sold separately
• Collector Size - 2-1/2 in.
• Collector Style - BALL and SOCKET Style (Gasketless)
• Reducer Outlet Size - 2-1/2 in.
• Exhaust System Dia - 2-1/2 in.
• Contents - Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
• Emissions Notes - Not legal for sale or use in California, or on pollution controlled vehicles.
• Engine - Chevy LS Series
• Flange Thickness - 0.375 in.
• Header Style - Mid-Length Tube
• IMPORTANT! - Some LS have dipstick in pan and will require drilling of dipstick port on block
• O2 Sensors Included - No
• Pickup #2522
• Port Shape - Round
• Material - Mild Steel
• Sump Style - Wet Sump
• Variations42921, 42922, 42913.
• Installation Notes - Requires Oil Filter relocation. See Trans Dapt #1012, 1014 or 1016 filter kits
• Dipstick Port - No
• Sump Location - Rear
• Kicked Out - No
• with A.I.R. System - No
• with EGR - No

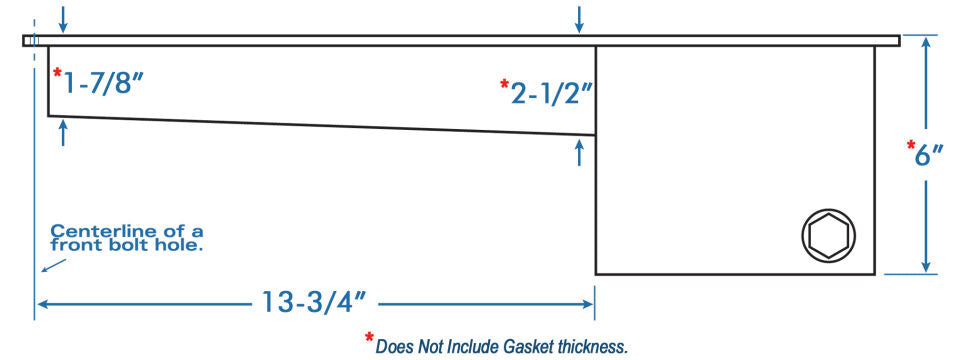

• Oil Pan Depth (in)2 in. at front of Pan; 6 in. at Rear Sump
• Tuned - No
• Bolts/Studs Included - Yes
• Collector Bolts Included - Yes
• Crank Shaft Wiper Included - No
• Drain Plug Included - Yes
• Gasket Or Seal Included - Yes
• Header Fasteners Included - Yes
• Hedman Hedders Included - Yes
• Installation Hardware Included - Yes
• Motor Mounts Included - 4592
• Mounting Hardware Included - Yes
• Oil Pan Included - Yes
• Oil Pan Bolts Included - Yes
• Oxygen Sensor Bung Included - No
• Pickup Included - Yes
• Reducers Included - Yes
• Windage Tray Included - No
• Y-Pipe Included - No
• Primary Tube Gauge16g
• Primary Tube Diameter (in)1.50 in.
• Package Contents - Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
• Header Material - Mild Steel
• Header Finish - Uncoated
• Cylinder Head - Factory Style
• O2 Provision - No
• Oil Pan Capacity - 5 Qt. Capacity
• Oil Pan Material - Steel
• Performance - Yes
• Transmission Type - Automatic Transmission
• Vehicle Family - A-Body (GM) 1964-67
• Replacement Gasket - 27470
• Replacement Head Flange Gasket - Yes
• Replacement Motor Mount Kit - 4592
• California Proposition 65WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
• Sump Dimensions - Driver: 4 3/4 in. x 3 in. x 8 1/4 in.; Passenger: 7 in. x 8 1/4 in.


NOTE: It is possible that some of these kits may take 2-4 weeks to complete depending on header finish.
