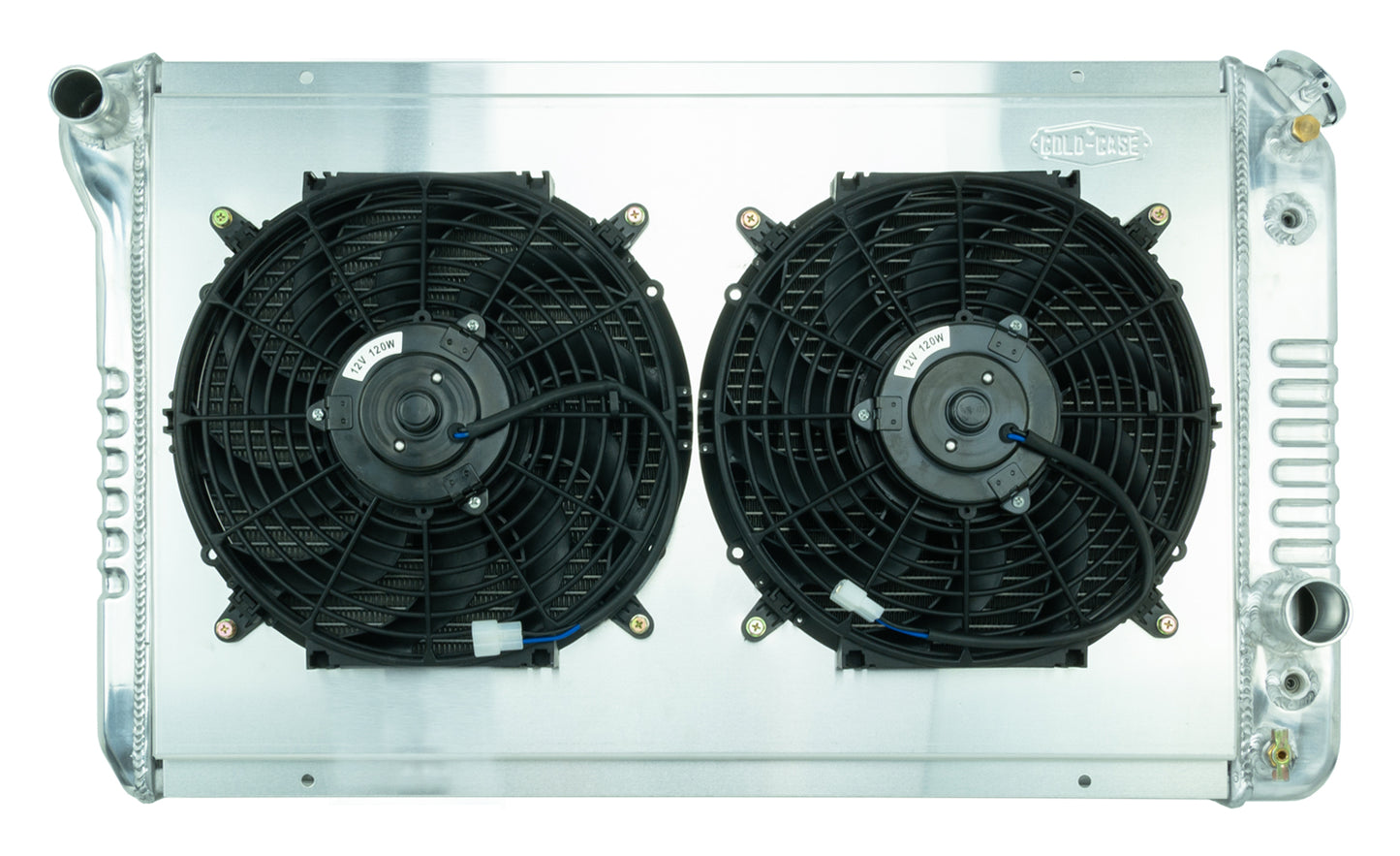

1982-92 Camaro/Firebird Cold Case Aluminum Radiator

1982-1992 Camaro/Firebird 3rd Gen Aluminum Performance Radiator.
Factory shroud will need modification.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Rows
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic/standard trans

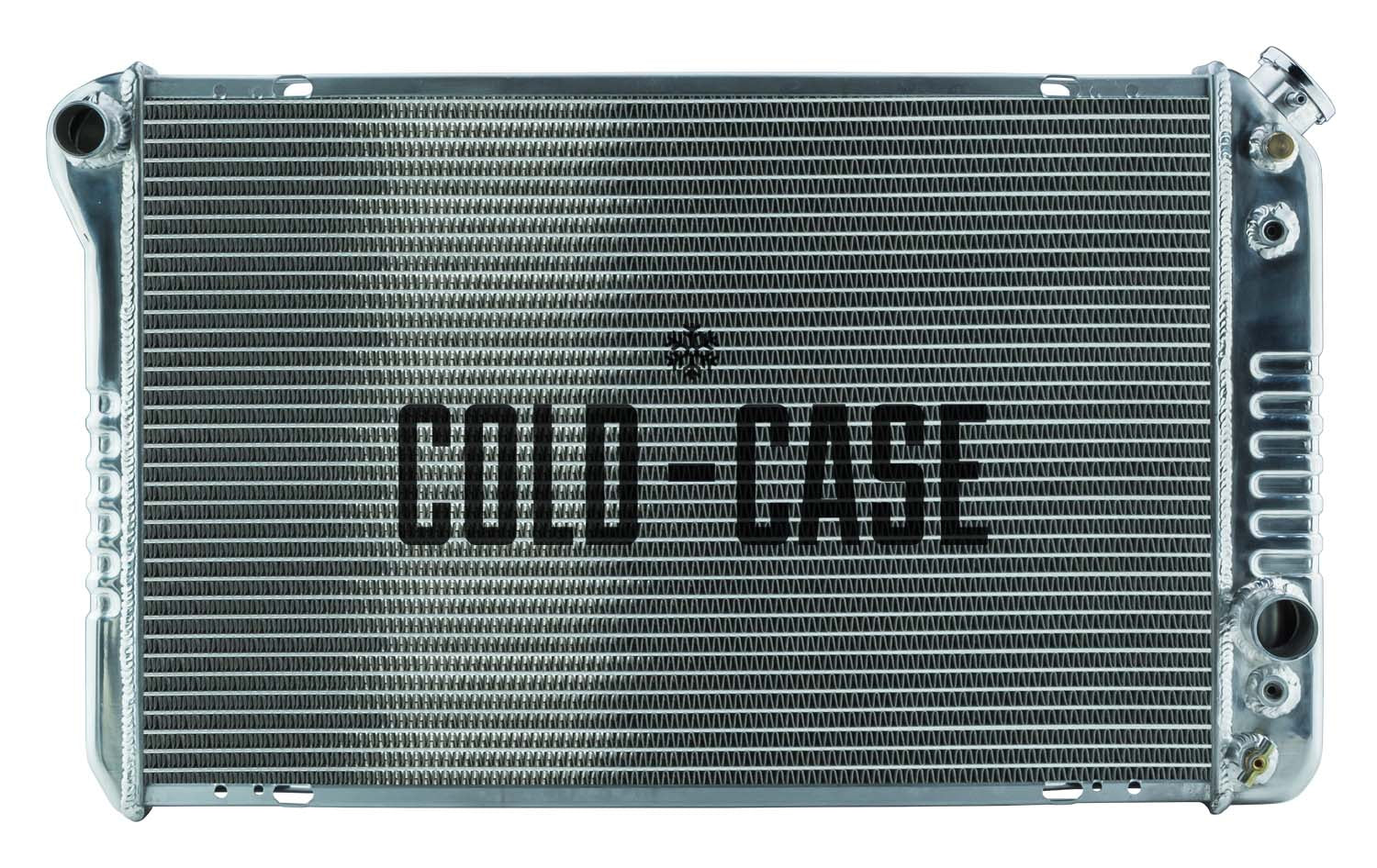

• Old Part Number: RPE590A

Radiator Specs

• Core Height 16.85 Inch
• Core Width 26.25 Inch
• Overall Height 18.5 Inch
• Overall Width 32 Inch
• Overall Thickness 3 Inch
• Upper Hose 1.25 Inch
• Lower Hose 1.5 Inch
• Tubes (2) 1.25 Inch Tubes
• Trans Cooler Fitting: 5/16" Inverted Flare
