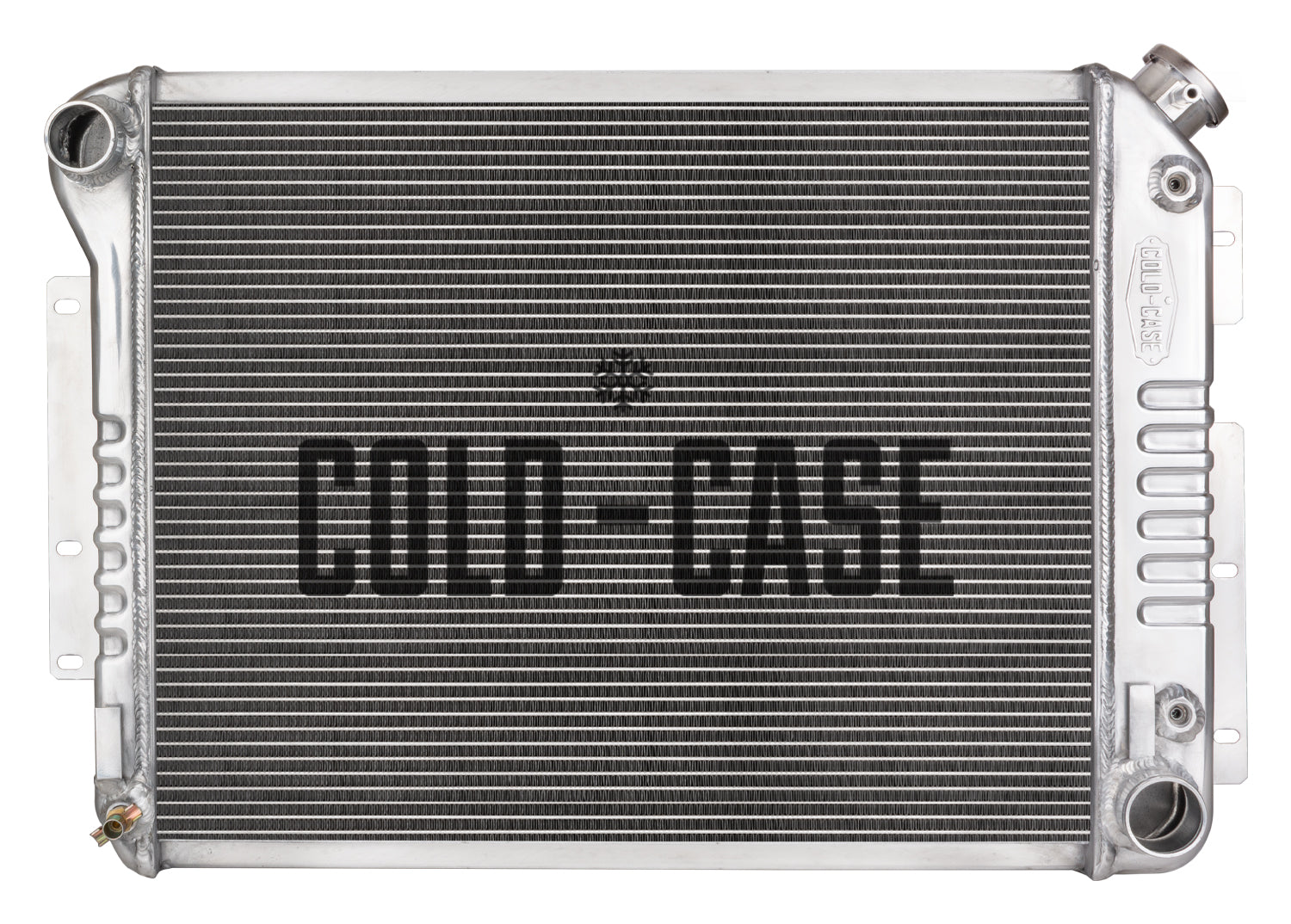

1967-1969 Camaro Small Block Cold Case Aluminum Radiator, Automatic Transmission

1967-1969 Camaro Small Block Aluminum Performance Radiator. AT Cars.
For Big Block version, or if you want to use electric fans, use CHC11A.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping.

For the Black Powder-Coated version, use part # CHC549AB. With our Night Rider Black series, you will be hard pressed to find a difference between an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 67-69 Camaro w/ Small Block
• Old Part Number: RPE549

Radiator Specs

• Core Height 16.85 inch
• Core Width 21.25 inch
• Overall Height 18.5 inch
• Overall Width 28.8 inch brackets
• Overall Thickness 3 inch
• Tubes (2) 1 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.77 inch
• Trans Cooler Fitting: 5/16" Inverted Flare
