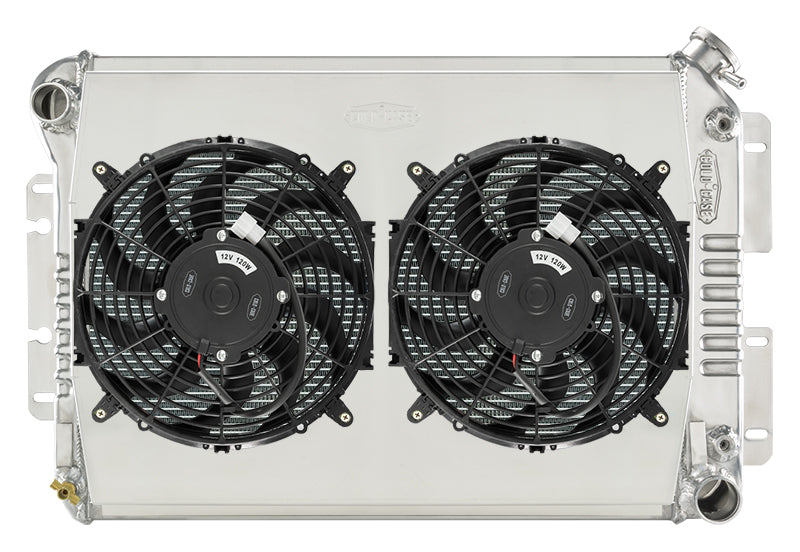

1967-1969 Camaro Big Block and 1967-1969 Firebird Cold Case Aluminum Radiator, Automatic Transmission

1967-1969 GM F-Body Aluminum Performance Radiator. AT Cars. Big Block Camaro and all Firebird models.

Also fits 68-71 Nova Big Blocks with bracket mount radiators.

These radiators are original appearing and have the correct stamping.

For the Black Powder-Coated version, use part # CHC11AB. With our Night Rider Black series you will be hard pressed to find a difference between an original versus a COLD-CASE.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Fits:

• 67-69 Firebird
• 67-69 Camaro w/ Big Block
  • Can be used on SB cars. Will need to swap out fan shroud.

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
• Old Part Number: RFE11AL

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 18.5 inch
• Overall Width 31.25 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
• Trans Cooler Fitting: 5/16" Inverted Flare
