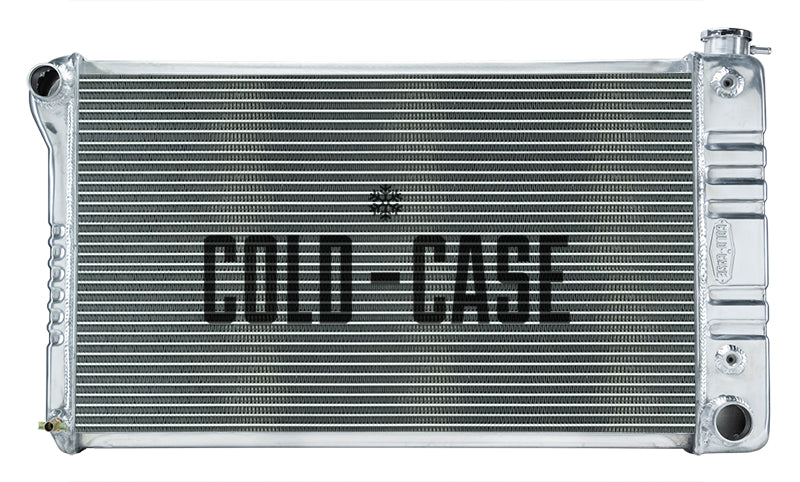

1966-71 Oldsmobile 4-4-2 Cold Case Aluminum Performance Radiator

1966-1971 Olds 442 28" Core Aluminum Performance Radiator.
For other 29" A Body models, see GMA42A.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

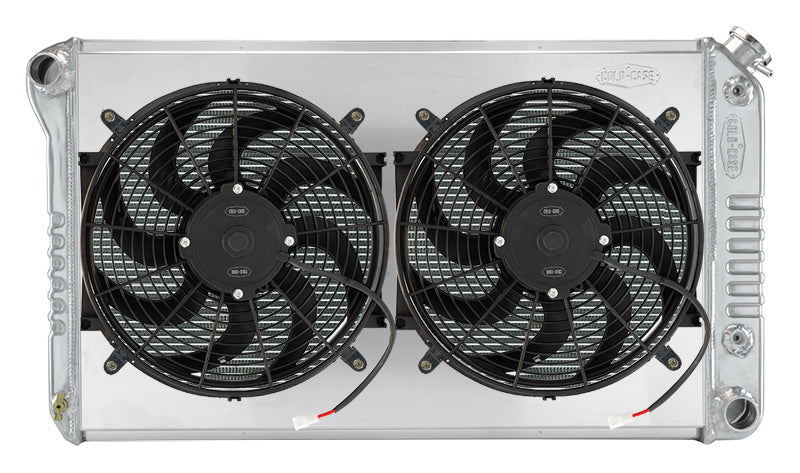

When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25" tubes, aluminum fan shroud and dual 14" fans, flowing at 2200cfm per fan! For extreme horsepower applications OR if you just want the best of the best...

• 100 percent TIG welded
• (2) 1.25 inch Rows
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto and standard trans (auto-trans-cooler)
• Direct fitment for 66-71 Olds 442 V8

Radiator Specs

• Core Width 28 inch
• Core Height 18 inch
• Overall Width 33.75 inch
• Overall Height 19.25 inch
• Overall Thickness 3 inch
• Upper Hose 1.5 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25 Inch Tubes
• Trans Cooler Fitting:
