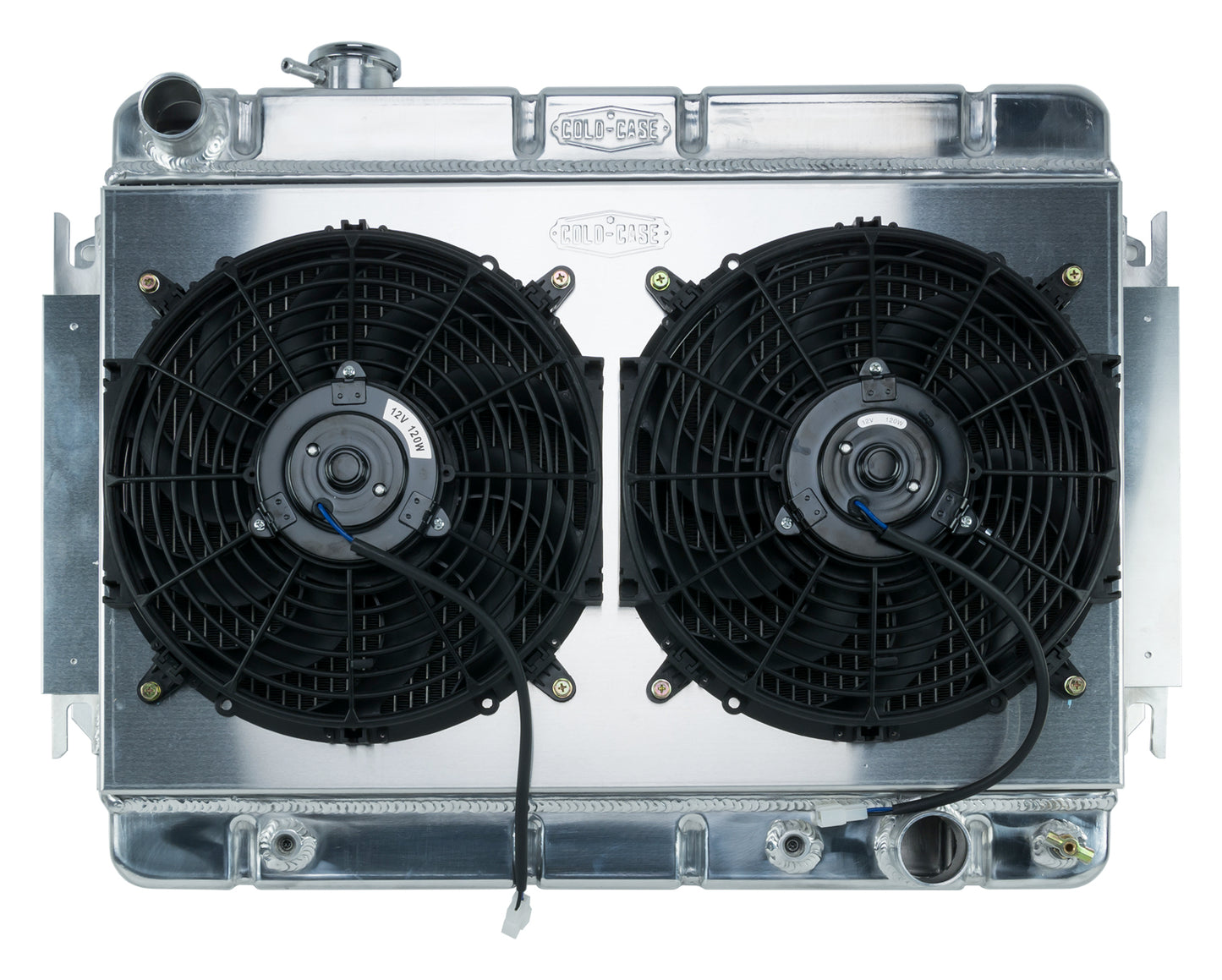

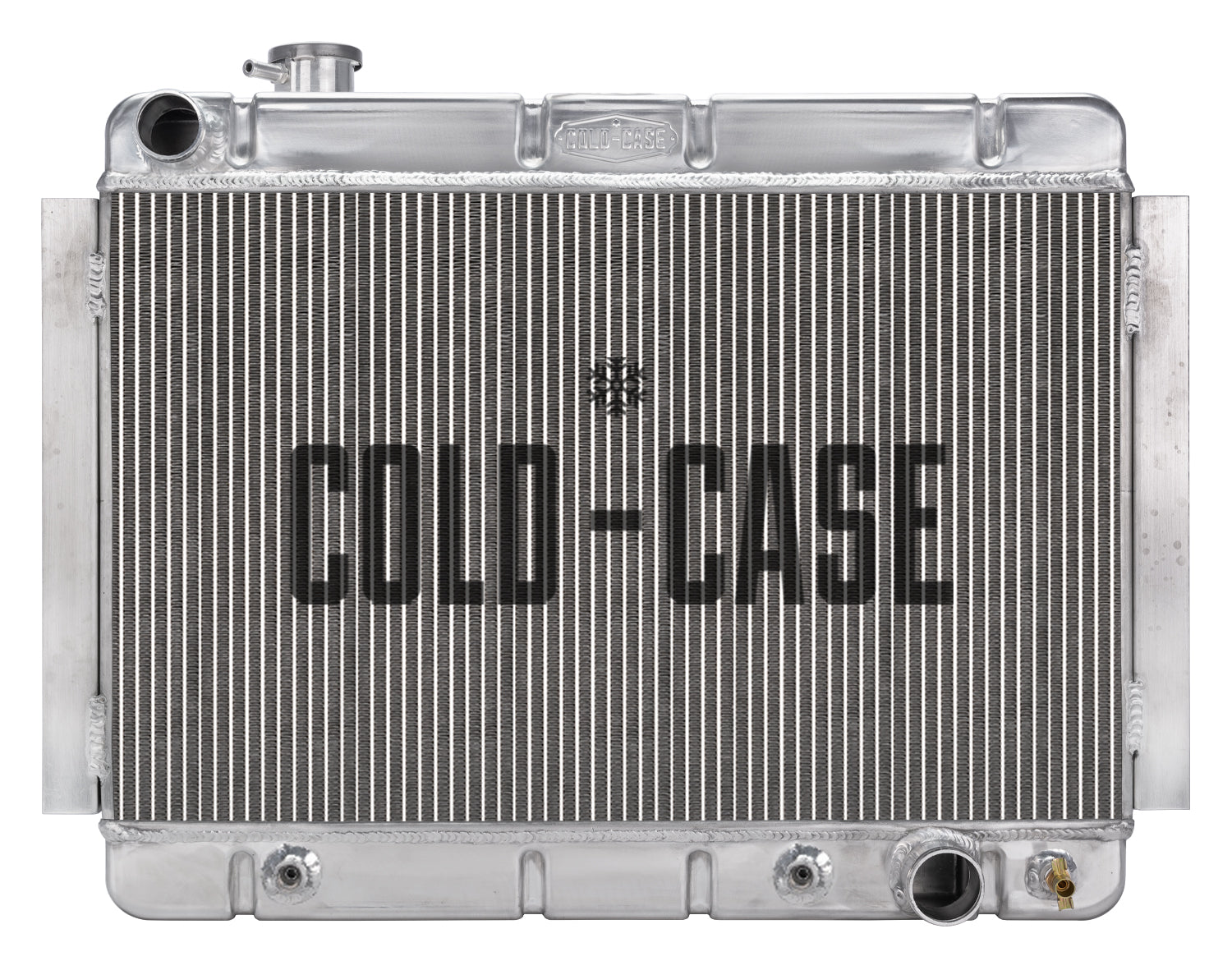

1966-67 Chevelle/El Camino Cold Case Performance Radiator, Automatic Transmission

1966-1967 Chevrolet Chevelle/El Camino Aluminum Performance Radiator. AT Transmission.
This is the most popular configuration with an offset filler and upper inlet on far driver side. 25" wide core with AC applications but will fit all V8.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 66-67 Chevelle/El Camino
• Old Part Number: RPE542

Radiator Specs

• Core Height 15.4 Inch
• Core Width 24.7 Inch
• Overall Height 20.5 Inch
• Overall Width 27.75 brackets Inch
• Overall Thickness 3 Inch
• Tubes (2) 1.25 Inch Tubes
• Upper Hose 1.57 Inch
• Lower Hose 1.77 Inch
• Trans Cooler Fitting: 5/16" Inverted Flare
