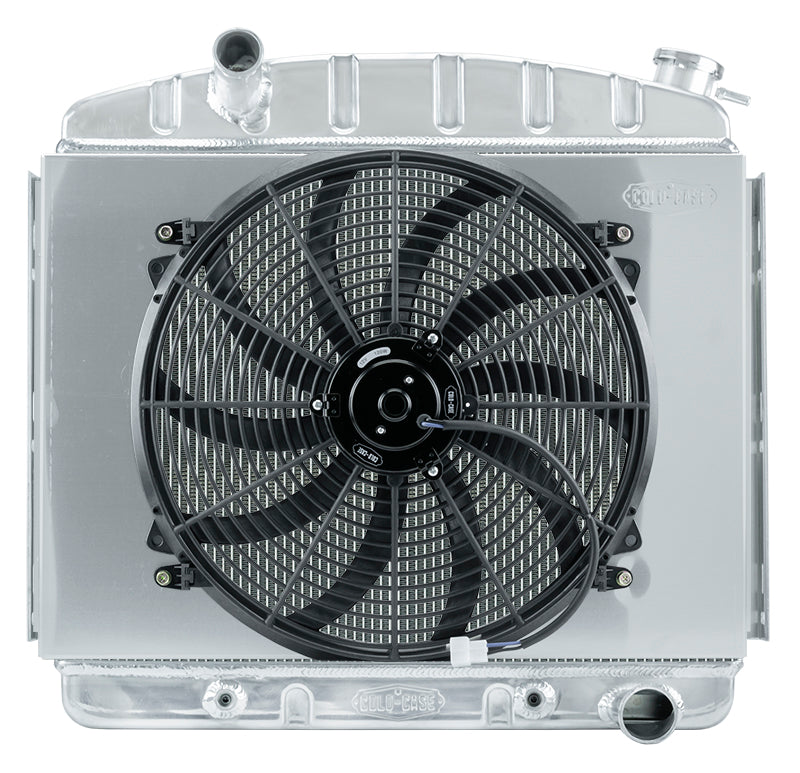

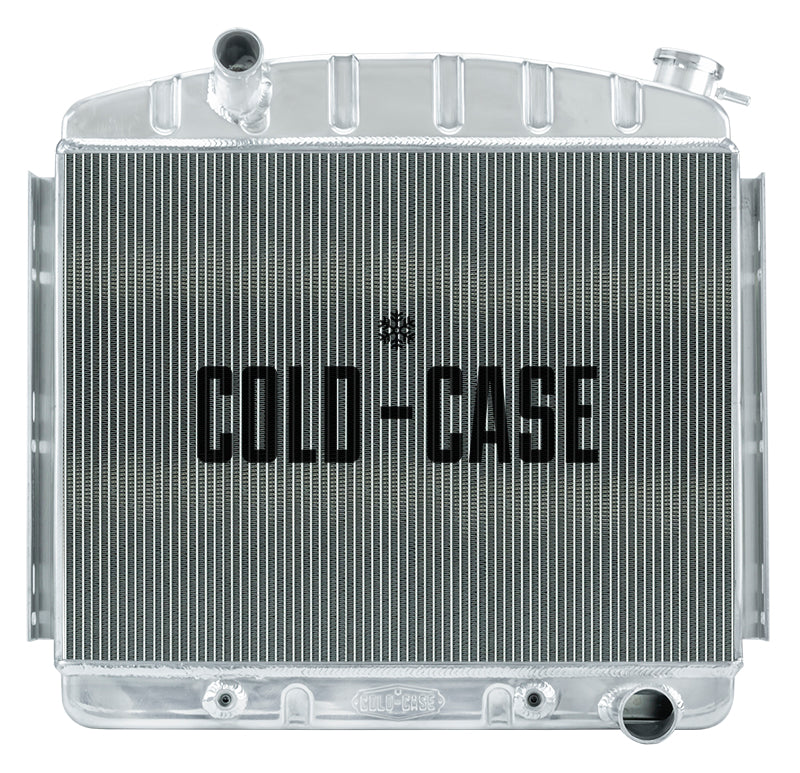

1957 Tri-5 Chevrolet Cold Case Aluminum Radiator, 6 Cylinder (Front Mount)

1957 Chevrolet Tr-Five Aluminum Performance Radiator. Straight 6 position cars for mount in front of radiator support. Direct fit for 57 cars. Upper inlet is on driver side so the hood can close correctly.

**If you have a V8 support you will need to install a 6 cylinder radiator support to install this radiator.**

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping.

For the Black Powder-Coated version, use part # CHT563A-7B. With our Night Rider Black series, you will be hard pressed to find a difference between an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 57 Chevy (Straight 6 position mount)
• Old Part Number: RPE563-7

Radiator Specs

• Core Height 17 inch
• Core Width 21.5 inch
• Overall Height 23.5 To Cap
• Overall Width 23.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Trans Cooler Fitting: 5/16" Inverted Flare
