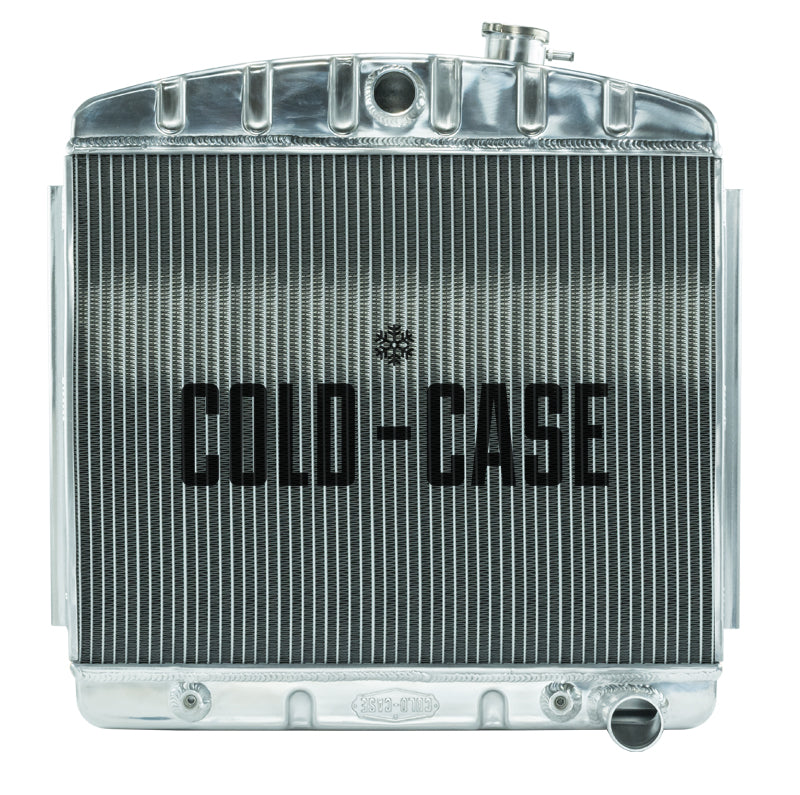

1955-57 Tri-5 Chevrolet Cold Case Aluminum Radiator, 8 Cylinder

1955-1957 Chevrolet Tri-Five Aluminum Performance Radiator. V8 Position cars for mount behind (engine side) radiator support.
For 6cyl mounting see part numbers CHT563A and CHT563A-7 or our replacement radiators support system.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping.

For the Black Powder-Coated version, use part # CHT562AB. With our Night Rider Black series, you will be hard pressed to find a difference between an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 55-57 Chevy (V8 position mount)
• Old Part Number: RPE562

Radiator Specs

• Core Height 17 inch
• Core Width 22 inch
• Overall Height 23.5 To Cap
• Overall Width 23.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Trans Cooler Fitting: 5/16" Inverted Flare
