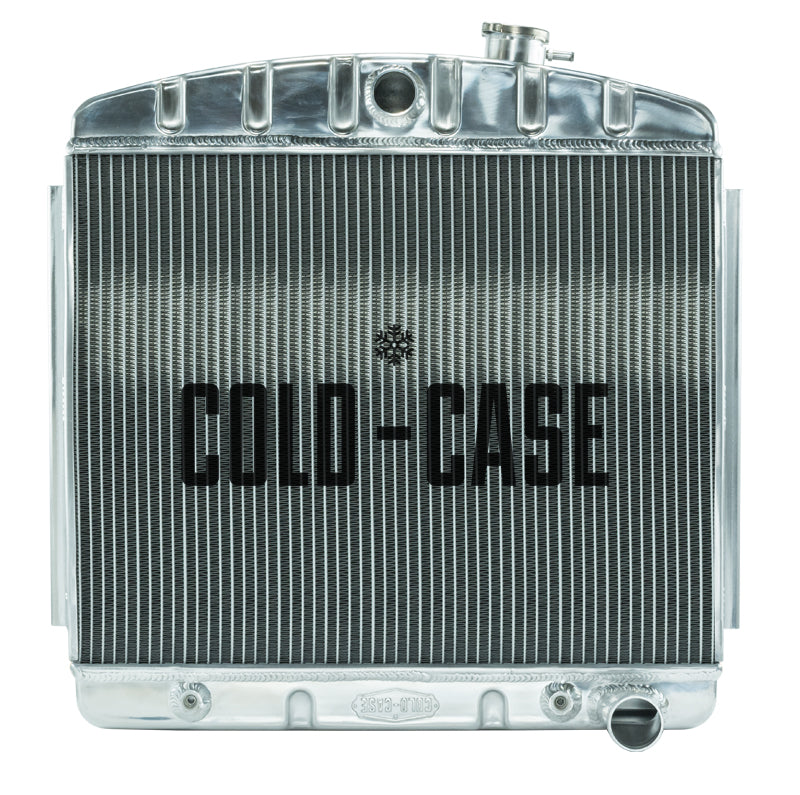

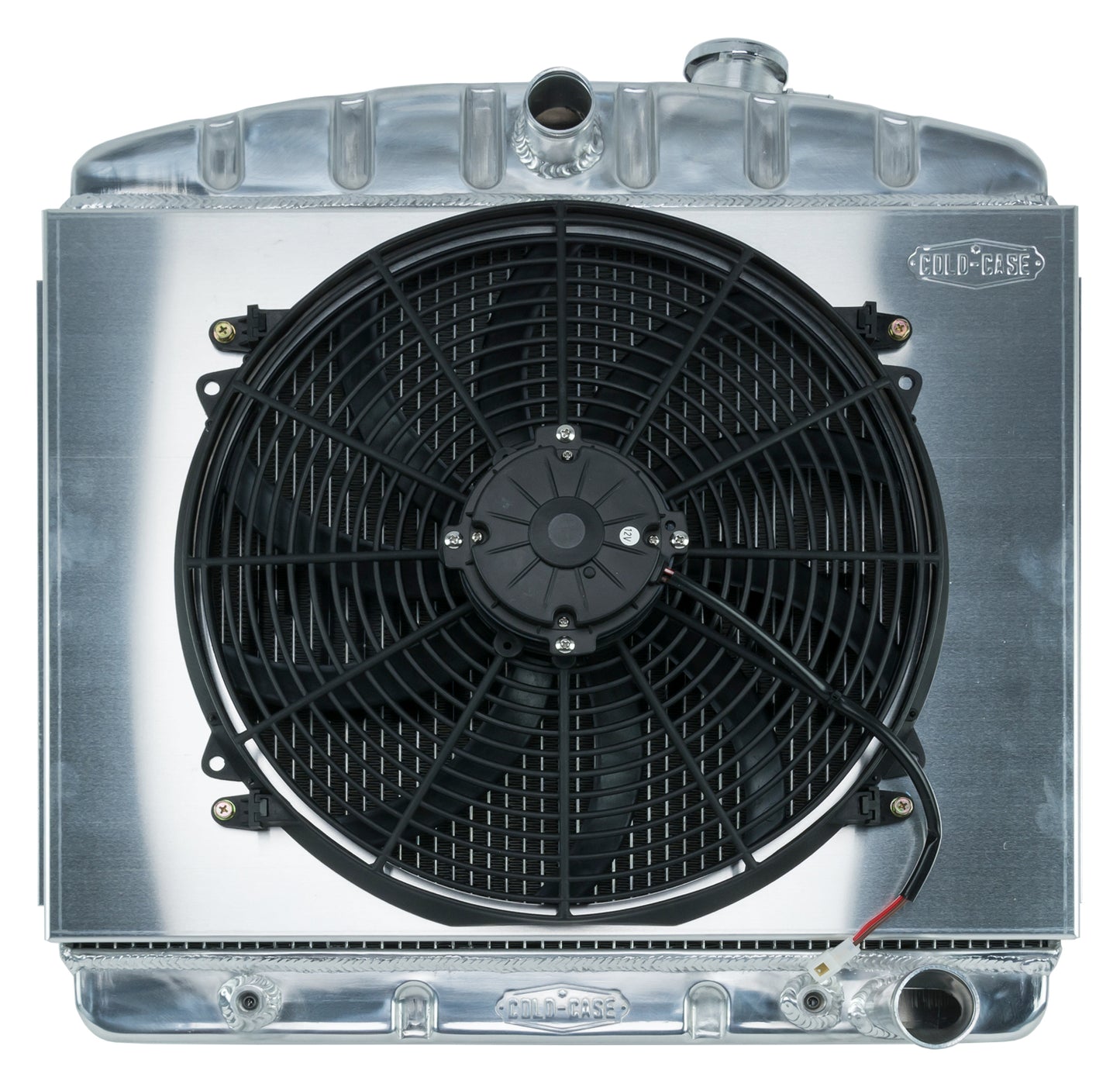

1955-56 Tri-5 Chevrolet Cold Case Aluminum Radiator, 6 Cylinder (Front Mount)

1955-1956 Chevrolet Tr-Five Aluminum Performance Radiator. Straight 6 position cars for mount In Front (grille side) of radiator support. Direct fit for 55-56 cars. 57 owners must use CHT563A-7 for proper hood clearance.

**If you have a V8 support and are using the conversion brackets to move the radiator to the front position, you still use CHT562A(K).**

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping.

For the Black Powder-Coated version, use part # CHT563AB. With our Night Rider Black series, you will be hard pressed to find a difference between an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 55-56 Chevy (Straight 6 position mount)
• Old Part Number: RPE563

Radiator Specs

• Core Height 17 inch
• Core Width 22 inch
• Overall Height 23.5 To Cap
• Overall Width 23.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Trans Cooler Fitting: 5/16" Inverted Flare
